Indicators
:::tip Every indicator has its own guide In the settings window of almost every indicator there is the i button, at the top right. It opens a complete guide: what the indicator shows, how to read it, how to use it and what each setting does. See The built-in help. :::

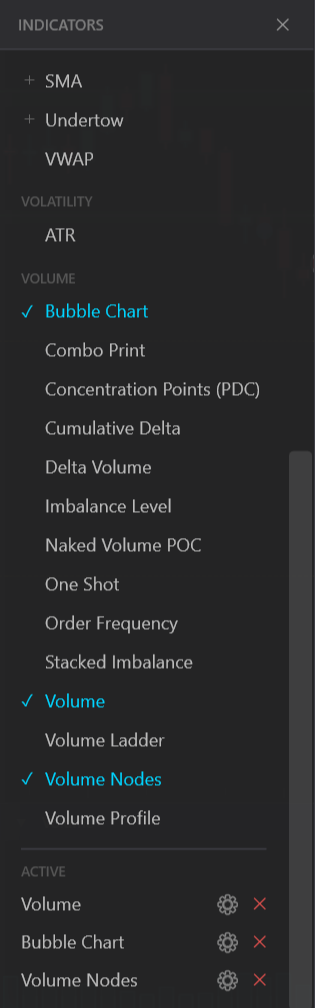

Add an indicator
- In the chart, open the Indicators menu. The INDICATORS panel opens.
- Click the name of the indicator.
Indicators are grouped by category. Next to the name:
- ✓ means the indicator is already active;
- ＋ means you can add it more than once, for example two moving averages with different periods.
If you click again an active indicator that cannot be added more than once, you remove it.
Some indicators are disabled when the loaded history is not enough. For example Day Range needs at least one previous session: hover over the name to read the reason.
To close the panel, click ✕.
Configure or remove an indicator
In the ACTIVE section of the INDICATORS panel you find the active indicators:
- ⚙ opens the settings;
- ✕ removes the indicator.
For indicators in a pane below the chart, you also find the same buttons in the pane header.

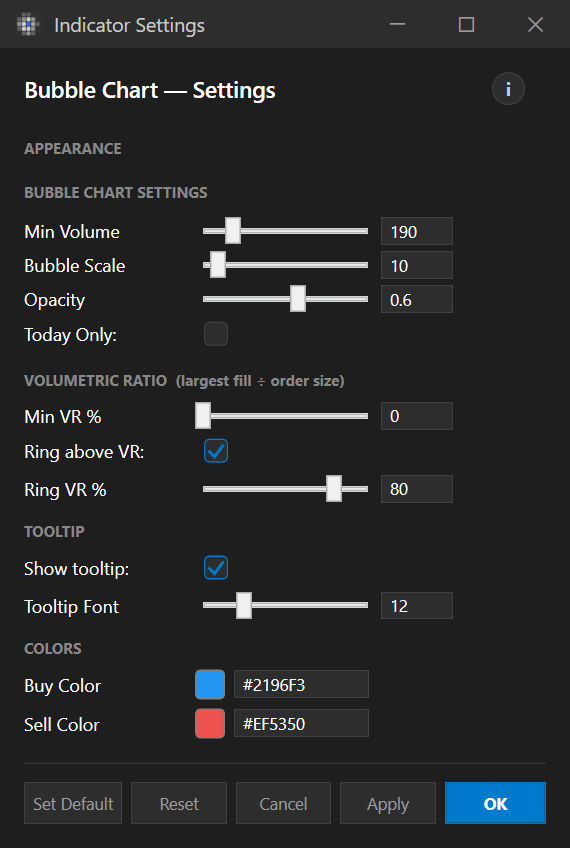

The settings window
The window title is the indicator name followed by — Settings, for example ATR — Settings. The window contains:
- the appearance settings (APPEARANCE section), for example visibility, colors, opacity, line thickness and style. The items change from indicator to indicator;
- the settings specific to the indicator, divided into sections;
- at the top right, the i help button.
The buttons at the bottom:
| Button | Effect |
|---|---|
| Apply | Applies the changes without closing, so you can see the result |
| OK | Applies and closes |
| Cancel | Closes without applying |
| Reset | Restores the default values |
| Set Default | Saves the current values as defaults for that indicator |
The built-in help
Almost all indicators have a complete guide:
- Open the indicator settings with ⚙.
- Click the i button, at the top right.
The guide explains what the indicator shows, how to read it, how to use it in trading and what each setting does. Whenever you want to understand an indicator, start here.
The simplest indicators have no guide: Volume, EMA, SMA, Last Price and Bid / Ask.
Available indicators
| Category | Indicators |
|---|---|
| GENERAL | Bid / Ask, Last Price |
| L2 BOOK | Liquidity Blocks, MBO Heatmap, MBO Histogram |
| PATTERN | Dagger |
| SESSION | Current Day Profile, Day Range, IV Bands, Opening Range, Session Highlight |
| TREND | Delta VWAP, EMA, SMA, Undertow, VWAP |
| VOLATILITY | ATR |
| VOLUME | Bubble Chart, Combo Print, Concentration Points (PDC), Cumulative Delta, Delta Volume, Imbalance Level, Naked Volume POC, One Shot, Order Frequency, Stacked Imbalance, Volume, Volume Ladder, Volume Nodes, Volume Profile |
The indicators you add and their settings are saved in the template and in the workspace. See Templates and workspaces.
