Navigating the chart
Move and zoom
| Action | Effect |
|---|---|
| Drag with the left button | Moves the chart horizontally and vertically |
| Mouse wheel | Zooms the time axis |
| Drag on the price axis | Stretches or compresses the price scale |
| Double-click the chart | Goes back to the latest candles, with automatic scale and scrolling |
| Double-click an indicator pane | Restores the pane's automatic scale |
When you move the chart, TickerExplorer stops following new candles and adjusting the price scale. To go back to automatic behavior, double-click the chart or click ▶| (Go to live) at the bottom right.
To go to the beginning of the loaded history, click |◀ (Go to start).

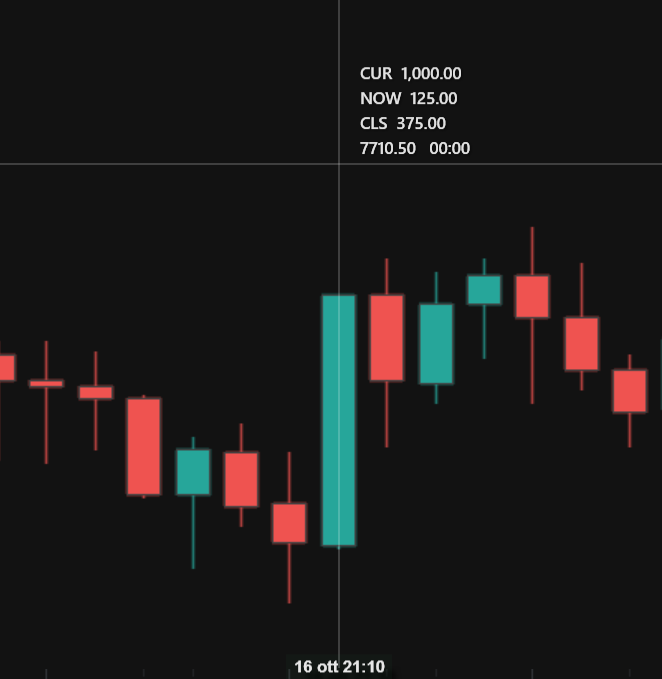

The crosshair
The crosshair follows the mouse and shows price and time on the axes. The price is rounded to the instrument's tick.
Next to the crosshair you can see three dollar values:
- CUR: the range of the candle under the cursor;
- NOW: the range of the candle being formed;
- CLS: the distance between the cursor price and the last price.
You turn on and adjust the crosshair and these values in Properties, CROSSHAIR section, or with the Crosshair button in the toolbar. See Chart properties.
Each window has its own crosshair: crosshairs of different charts do not move together.
Measure price and time
The Rectangle drawing tool works as a ruler. Draw it between two points: it shows the duration, the number of candles, the price difference and the number of ticks. See Drawings and studies.
Right-click on the chart
Right-clicking the chart opens the order menu at the price you clicked. See The right-click menu.
